Key Steps and Precautions for the Acceptance of HDPE Geocell Materials

With the widespread application of hdpe geocells in environmental protection, the specifications, models, and prices of geocells on the market have gradually increased, resulting in a dazzling array of choices. This means that not only do we have to put a lot of effort into selecting hdpe geocells, but we also need to be careful during acceptance. A slight oversight can lead to losses of manpower and resources. Today, Lianxiang Geotechnical will explain the key steps and precautions for the acceptance of geocell materials. Broadly speaking, it can be divided into three stages: "Preliminary Preparation," "On-site Acceptance," and "Post-acceptance Processing." Below, we will explain these in detail.

1. Acceptance Preparation Stage

1.1. Data Collection and Verification

• Collect all technical documents provided by the hdpe geocell supplier, including product certificates of conformity, factory inspection reports, performance test reports (issued by a qualified third-party institution), product manuals, and batch numbers, etc.
• Verify the consistency between the data and the engineering design documents, focusing on confirming that the geocell model, specifications (e.g., cell height, sheet thickness, cell dimensions), material (e.g., high-density polyethylene (HDPE), polypropylene (PP), and mechanical properties (e.g., tensile strength, elongation at break, weld strength) meet the design requirements.
• Carefully verify the data against the accompanying documents on-site. If there are discrepancies in specifications, materials, or technical indicators, the entire shipment should be rejected.

1.2. Site Preparation

• Designate a specific acceptance area, ensuring the site is flat, dry, and clean to prevent material contamination or damage.
• Prepare the necessary tools and equipment for acceptance, such as measuring tapes, calipers, electronic scales, simple tensile testing tools (if necessary), and a camera (for recording appearance), ensuring the tools are calibrated and qualified.

1.3. Personnel Organization

• Appoint a responsible person for acceptance and form an acceptance team. Members should include representatives from the construction unit, supervision unit, construction unit, and supplier. The design unit may be invited to participate if necessary.
• Acceptance personnel must be familiar with relevant standards for hdpe geocells (such as GB/T 19274-2003, "Geosynthetics - Geocells") and engineering design documents, and master the key points of acceptance.

2. Document and Data Inspection

2.1. Check the "Three Certificates":

• Product Quality Certificate: Each batch of geocells should be accompanied by a certificate of conformity, indicating the product name, specifications, production date, batch number, and applicable standards. The product certificate should be strictly compared with the complete set of technical documents provided by the manufacturer in the early stage.
• Factory Inspection Report: The inspection report provided by the manufacturer should include the test results of key performance indicators (such as tensile strength and weld strength) and compare them with the standard requirements.
• Type Inspection Report: A report on the comprehensive performance testing of the product on a regular basis, usually issued by a qualified third-party testing agency, with a validity period of generally one year. This is an important document proving the long-term performance and stability of the product.

2.2. Check the Shipping List

• Quantity Verification: Check if the quantity on the shipping list matches the project order quantity, and verify the name, specifications, and model of the goods on the list.
• Time Verification: Check if the departure time on the shipping list matches the manufacturer's commitment.
• Address Verification: Check if the departure location is the original manufacturer's shipment address.

3. Appearance Quality Inspection

3.1. Overall Appearance Observation

• Check if the hdpe geocell packaging is intact, without damage, dampness, contamination, etc., and whether the packaging label is clear (must include product name, specifications, batch, supplier information, etc.).
• Unpack and randomly inspect each batch, observing whether the surface of the hdpe geocell sheet is flat, whether the color is uniform, and whether there are defects such as cracks, holes, bubbles, scratches, and impurities.

3.2. Structural Integrity Inspection

• Check the welding/bonding parts of the geocell, ensuring that the welds/bonding joints are firm and flat, without problems such as detachment, false welding, missing welding, or weak bonding, and that the spacing of the welds is uniform and meets the process requirements.
• Inspect the shape of the unfolded geocells to ensure consistent cell unit dimensions, no obvious deformation or twisting, and no burrs or tears on the sheet edges.

3.3. Sample Comparison Inspection

• Check if the bulk order matches the samples provided by the manufacturer. If any discrepancies are found, contact the manufacturer immediately and refuse to accept the goods.

3.4. Hole Inspection

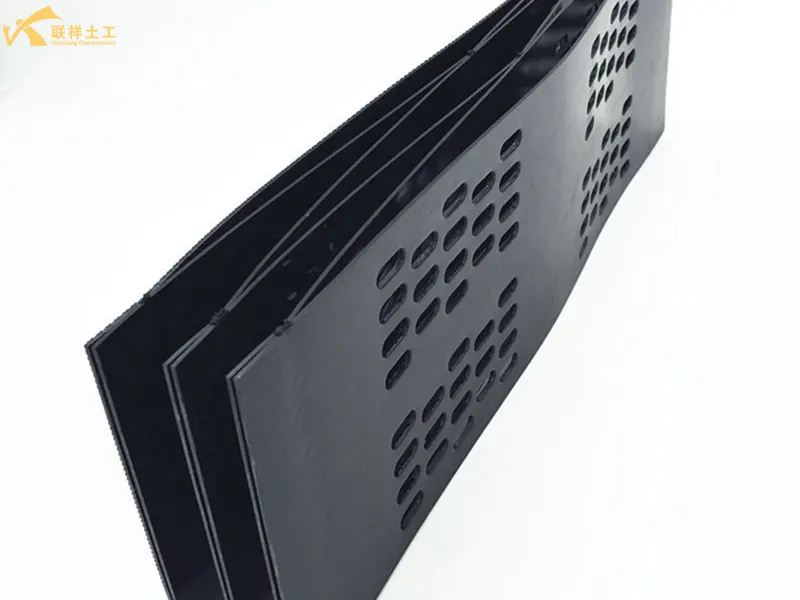

• Check if holes are drilled on the surface of the geocells according to project requirements. If drilling is required, check the number of holes per unit area to ensure it matches the project requirements.

4. Dimensional Deviation Detection

4.1. Key Dimension Measurement

• Sheet Thickness: Use calipers to randomly select at least 5 samples from each batch of products. Measure 3-5 points at different locations on each sample and take the average value. The deviation must meet the standard requirements (usually allowable deviation within ±10%, subject to design and standards).
• Cell Height and Dimensions: Unfold the hdpe geocells to their designed state. Measure the cell height, individual cell side length, or area using a measuring tape. Randomly select at least 10 cell units for measurement, record the data, and calculate the deviation to ensure it is within the allowable range.
• Length and Width: Measure the actual length and width of the entire roll or batch of geocells and compare it with the nominal values. The deviation must meet the standard requirements.
• Weld Spacing Width: Measure the distance between the two welds of the geocell to ensure it meets the standard requirements. A smaller weld spacing results in greater tensile strength but also higher cost.

4.2. Data Recording and Judgment

• Record all dimensional measurement data in detail. If the deviation of a single indicator exceeds the allowable range, the sampling ratio should be increased. If multiple samples or key indicators fail to meet the requirements, the batch should be directly judged as failing the dimensional inspection.

5. Performance Index Verification (If Necessary)

5.1. Sampling and Testing

If there are doubts about the product performance, or if the project has high quality requirements, random sampling and testing should be conducted from the batch to be accepted. Sampling methods follow relevant standards to ensure sample representativeness (e.g., 3-5 samples per batch, each sample size meeting testing requirements). A third-party testing organization with CMA (Certified Metrology Accreditation) is commissioned to test key performance indicators. Core items include:

• Mechanical properties: tensile strength, elongation at break, weld shear strength, weld peel strength.
• Environmental resistance: aging resistance (strength retention after UV aging), chemical corrosion resistance (based on engineering environment requirements).
• Other indicators: density, melt flow index, etc.

5.2. Verification of Test Results

After the test report is issued, the test data will be compared with the design requirements and national standards for compliance. If all indicators meet the standards, the performance test is deemed qualified. If any indicators fail to meet the standards, further retesting or supplier rectification is required.

6. Acceptance Result Judgment and Handling

6.1. Acceptance Judgment

• When all documentation is complete and meets requirements, appearance quality is defect-free, dimensional deviations are within allowable ranges, and performance indicators (including those from tests) meet standards, the batch of geocells is deemed acceptable, an acceptance record is signed, and it is permitted for warehousing and use.

6.2. Handling of Non-Acceptance

• If there are missing documentation, serious appearance defects, excessive dimensional deviations, or unacceptable performance indicators, the acceptance is deemed unacceptable.
• Corresponding measures will be taken for non-acceptance. For missing documentation, the supplier will be required to supplement and improve it, minor appearance defects can be rectified through negotiation, for dimensional or performance defects, the supplier will be ordered to return or replace the goods, and unacceptable materials are strictly prohibited from entering the project site.
• Non-conforming products will be properly identified, isolated, and recorded, with clear responsibilities and deadlines for handling them, and the rectification progress will be tracked until requirements are met.

7. Document Archiving

After the acceptance work is completed, all acceptance documents (including technical documents, appearance inspection records, dimensional measurement data, test reports, acceptance opinions, signed documents from all parties, etc.) will be organized and archived as an important basis for project quality traceability, ensuring that the documents are complete, standardized, and traceable.

8. Related Issues

8.1. What should be done if unqualified products are found during geocell acceptance?

A: If unqualified products are found during on-site acceptance, we should expand the scope and quantity of sampling and conduct a second inspection. If unqualified products are still found in the second inspection, then the acceptance is deemed unqualified.

8.2. What should be done if geocells are damaged during transportation?

A: If damage occurs during unloading at the acceptance site, the on-site unloading personnel are responsible. If damage occurs during transportation, the manufacturer and transportation company are responsible. Lianxiang geocells use internationally reputable logistics companies for transportation, so you can purchase with confidence.

8.3. If problems arise during project use after acceptance, is the manufacturer no longer responsible?

A: No, as long as the product is within the warranty period, you can contact the manufacturer if problems occur. Lianxiang products are guaranteed by the manufacturer. you can call us at any time if problems arise.

8.4. How should unqualified products be handled?

A: Provide the manufacturer with a list of unqualified products, return the goods to the manufacturer, and request compensation for delayed construction.

9. Conclusion

• Complete Documentation: All three certificates are indispensable.
• Strong Welds: Weld strength is crucial for the reinforcement function of hdpe geocells and must be carefully checked.
• Impartial Sampling: The sampling and testing process must be witnessed by both parties to ensure the representativeness and impartiality of the samples.
• Compliance with Standards: The final judgment will be based on the mechanical performance report from a third-party testing institution.

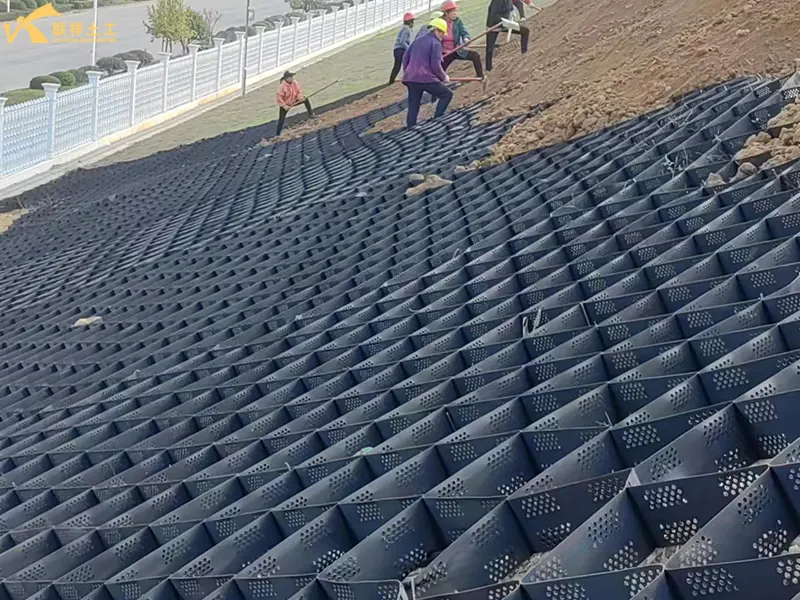

The above are the key steps and precautions for geocell material acceptance. HDPE Geocells are generally used in mitigating natural disasters and controlling hazards, so engineering projects have very strict quality requirements. Material acceptance is the first step in ensuring project quality. To guarantee project quality, we must strictly control every aspect of the acceptance process. Lianxiang Geotechnical has been engaged in the production and sales of geocell products for many years and has extensive experience in acceptance work. Please feel free to contact us with any related questions.
