Home Product Geogrid

Geogrid

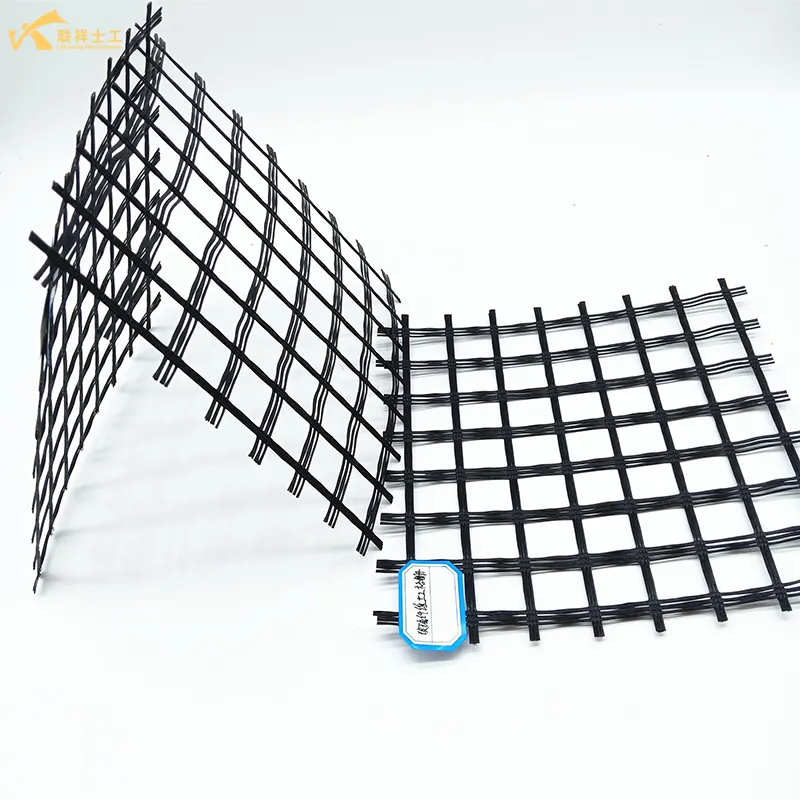

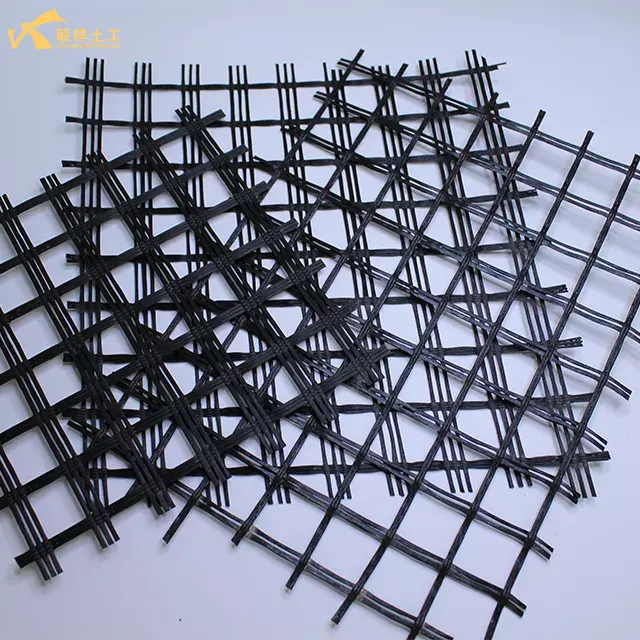

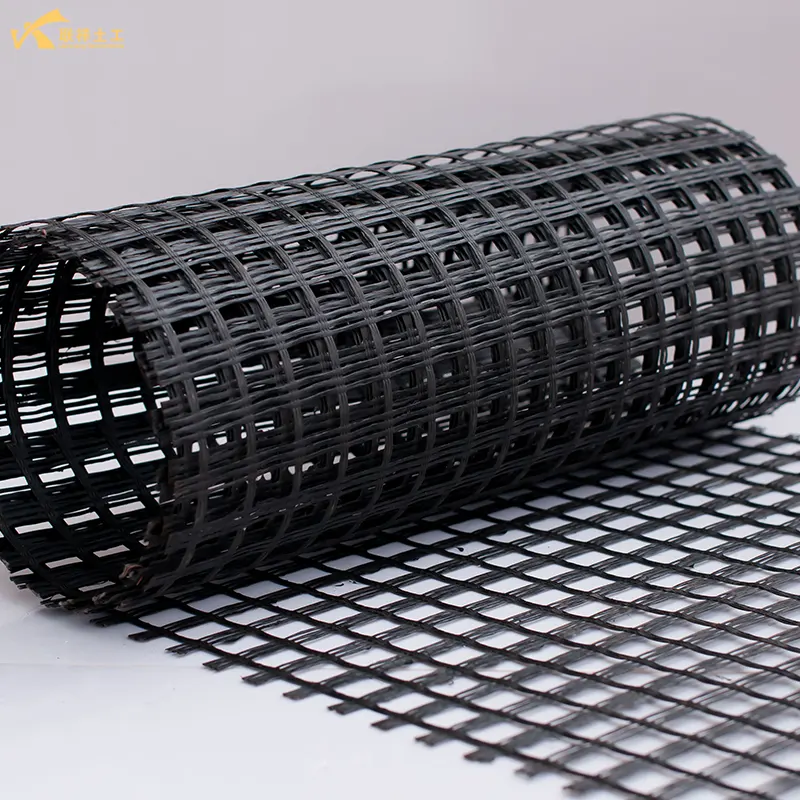

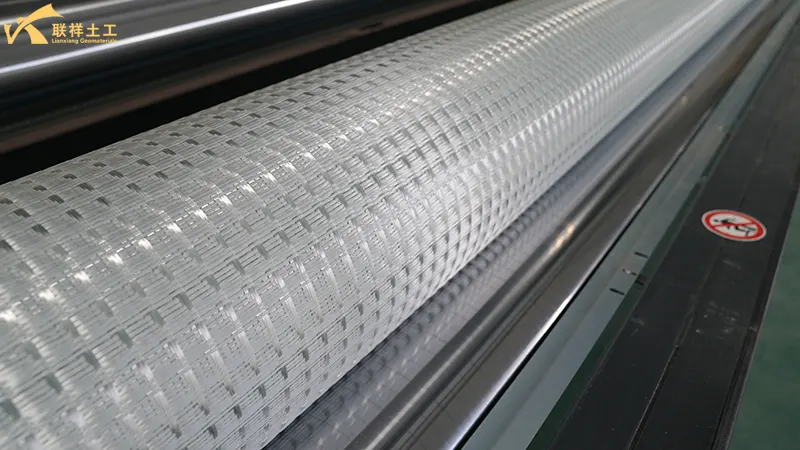

Fiberglass Geogrid

Mesh Size:

12.7*12.7mm25.4*25.4mm34*34mmOther size

Appearance:

Single warp & weftDouble warp & weftTriple warp & weftFour warp & weft

Tensile strength:

20KN-300KN

Description

Introduction

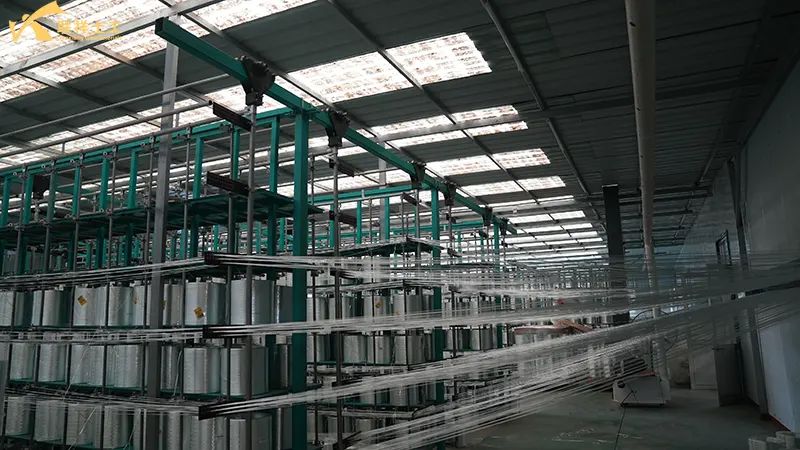

Glass fiber geogrid(EGA F' GRlD) is a kind of geosynthetic material that hasdeveloped rapidly in recent years, lt is manufactured from high quality reinfordE-glass fiber. lt uses warp knitted oriented structure and makes use of the mechni-cal property to improve its tensile strength. And then coat the network material withbitumen.

Application

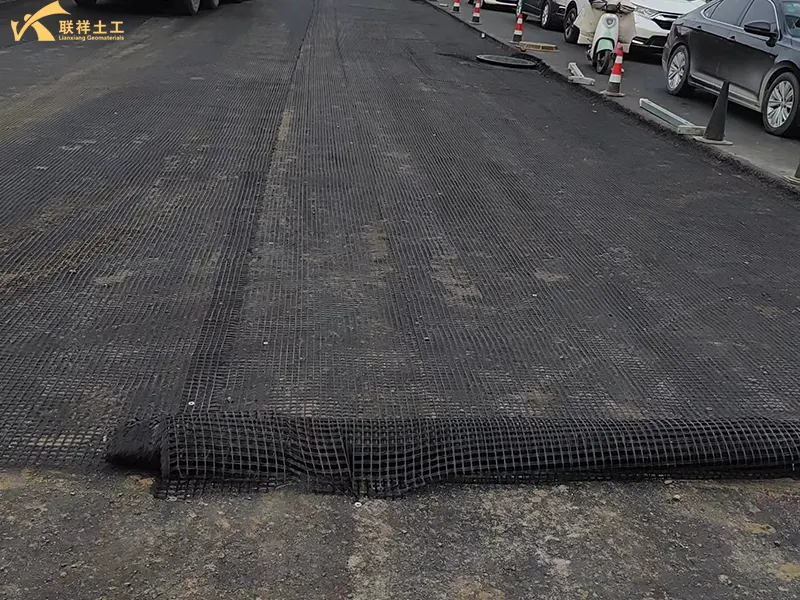

1. lt is applied in old asphalt cement pavement to reinforce the asphalt surface.and prevent diseases.
2. lt is applied in cement pavement to reconstruct composite road surface, andrestrain plate shrink to cause reflection crack.
3. it is applied in reconstruction project of road to prevent cracks caused by connection of old and new roads and difer-ential settlement.
4. lt is applied in relnforcement of soft earth bed, which is benelt for soft earth to absorb water and fix, restrain setlementeffectively,and reinforce the strenath of roadbed.
5. The semi-rigid base of new-buit road is easy to produce shrinkage crack, fiberglass geogrid can reinforce the crackof the road surace caused by crack reflection.

Feature

1. High Strength and Low Elongation

Utilizing high-strength, alkali-free glass fiber, it boasts a tensile strength of 60-120 kN/m and an elongation at break of less than 3%, ensuring resistance to deformation under long-term loads.

2. High-Temperature Resistance and Thermal Stability

Glass fiber has a melting point exceeding 1000°C, allowing it to withstand high temperatures during paving operations and exhibiting excellent thermal stability.

3. Creep and Aging Resistance

Glass fiber exhibits no creep and, after undergoing a special coating treatment, resists acid and alkali corrosion, UV aging, and bio-erosion, ensuring a long service life.

4. Enhanced Pavement Performance

It bonds tightly with the asphalt mixture, forming a composite mechanical interlocking system that significantly reduces reflective cracking, disperses stress concentrations, and extends the life of the pavement.

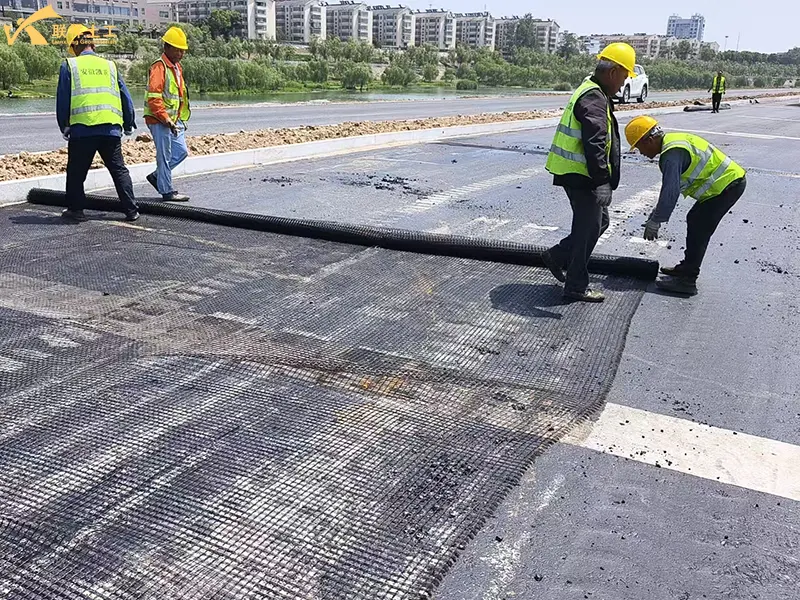

5. Convenient Construction

Lightweight and highly resilient, it can be cut and spliced, requiring no specialized equipment for installation. It is suitable for asphalt overlays and the junction between new and existing pavements.

6. Widely Applicable

Beyond road construction, it is also used in railways, airports, embankments, and sand control, reducing construction costs and improving project durability.

Specification

Item	EGA30-30	EGA50-50	EGA80-80	EGA100-100	EGA120-120	EGA150-150	EGA200-200
Brand	LX
Material	Fiberglass fiber
Tensile strength(MD), Kn/m ≥	30	50	80	100	120	150	200
Tensile strength(CMD), Kn/m ≥	30	50	80	100	120	150	200
Break elongation ratio(MD), % ≤	4
Break elongation ratio(CMD), % ≤	4
Roll Width, m	4-6
Roll Length, m	50 or 100
Aperture Size, cm x cm	25.4x25.4 12.7x12.7
