Material: | |
---|---|
Color: | |
Mesh Length: | |
Availability: | |

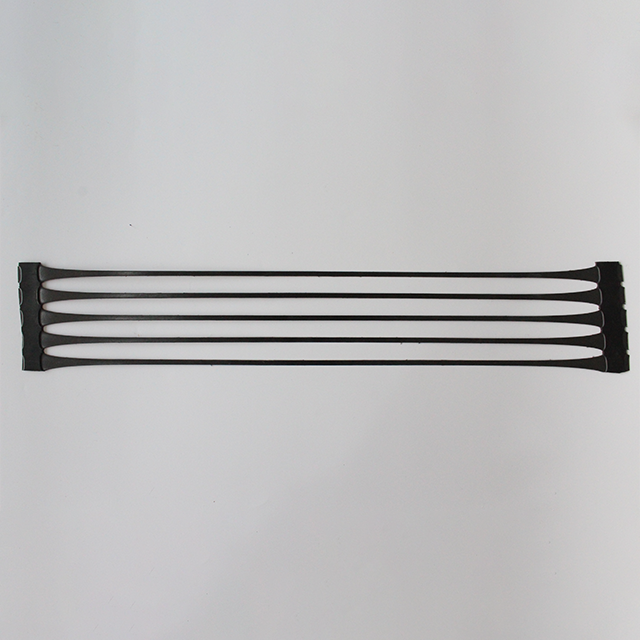

PP Uniaxial Geogrid is manufactured from Polypropylene. It is produced through the process of extruding, punching, heating and stretching. Maximum tensile strength is 300kN/m..
It is far more advantaged than traditional or existed reinforcement materials.
Performance
• High tensile strength
• High elastic modulus
Benefits
• Improving bearing capacity of foundation, retaining wall and dam
• Extending project life
• Reducing floor area
• Shortening construction period, reducing cost and maintaining expense
Application
• Retaining Wall Reinforcement
• Railway Reinforcement
• Dam Reinforcement
• Sea Reclamation Project
Technical data:
Properties | GG60PP | GG80PP | GG110PP | GG150PP | GG260PP | GG300PP |
| Lianxiang | |||||
Tensile Stength (kN/m) | 60.0 | 80.0 | 110.0 | 150.0 | 260.0 | 300.0 |
Elongation Ratio | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% |
Strength at 2% Elongation (≥kN/m) | 17.0 | 26.0 | 32 | 45 | 94 | 105 |
Strength at 5% Elongation (≥kN/m) | 35.0 | 48.0 | 64 | 90 | 185 | 195 |
Roll Length (m) | 100 | 100 | 50 | 50 | 50 | 50 |
Roll Width (m) | 1-3 |
