Product Introduction

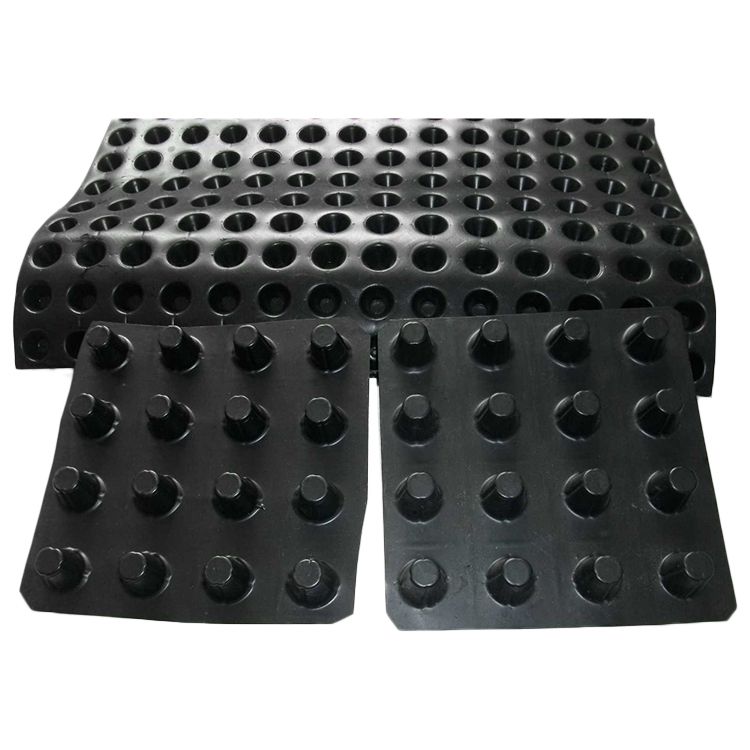

Dimpled plastic drain sheet is made of high molecular, produced by extrusion and adsorption. The tri-dimensional space can drain gas and fluid. It’s a multi-functional material, and it can be used to channel water and gas easily, which is sound insulation and vibration isolation. In the field of civil construction, it can be widely used in building roof system layer overhead, planted roof drainage ventilation, basement waterproofing system production, thermal and moisture isolation of the interior surface, road and rail tunnel drainage protection. In the urban land, space, material resources are becoming scarce today. Plastic dimple drainage sheet can provide the most valuable option.
Product Functions
1. Waterproofing and drainage: form a channel, which water and gas can go through;
2. Sound insulation and vibration isolation, Chemical resistance, resist to plants’ root;
3. Easy for construction, and have long lifetime;
4. It can be used in highway and railway waterproofing system; Underground waterproofing; Roof garden waterproofing projects, etc.
Product Application
1. Greening project: Garage roof greening, roof garden, vertical greening, pitched roof greening, football field, golf course.
2. Municipal project: Airport, roadbed, subway, tunnel, landfill.
3. Constructional engineering: Upper layer or lower layer of architectural foundation, internal and external wall as well as roof and baseboard of basement, roof waterproof and thermal-protective coating.
4. Water conservancy project: Seepage-proofing of reservoir, and artificial lake.
5. Traffic engineering: Road, railway roadbed, dam and slope protection.
Technical Data:
Item | 103 | 104 | 105 | 106 | 107(1) | 107(2) | 108 | 109 | ||
Sheet color | Black/White | |||||||||
Material | HPIS | |||||||||
Weight (g/m2) | 760 | 820 | 3600 | 1000 | 1100 | 1200 | 1300 | 1600 | ||
Thickness(mm) | single10 | Duple x18 | Iniection18 | single20 | single25 | Duplex25 | single30 | single40 | ||
Compressive strength(kpa) | 400 | 200 | 1200 | 320 | 260 | 200 | 280 | 260 | ||
Geotextile color (filter layer) | Black/White | |||||||||
Material | Polypropylene and polyester | |||||||||
Pore diameter(mm) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | ||
Run of volume | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | ||
Tensile Strength(N) | 278 | 278 | 278 | 278 | 278 | 278 | 278 | 278 | ||
Weight (g/m2) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | ||
Flow(L/S) | Tongji University hadraulic laboratory testing | |||||||||
Head loss 5cm | 1.6 | 2.4 | 3.5 | 2.9 | 3.2 | 3.2 | 4.2 | 4.6 | ||
Head loss 10cm | 2.2 | 3.2 | 5.2 | 4.2 | 4.6 | 4.6 | 6.4 | 7.2 | ||
