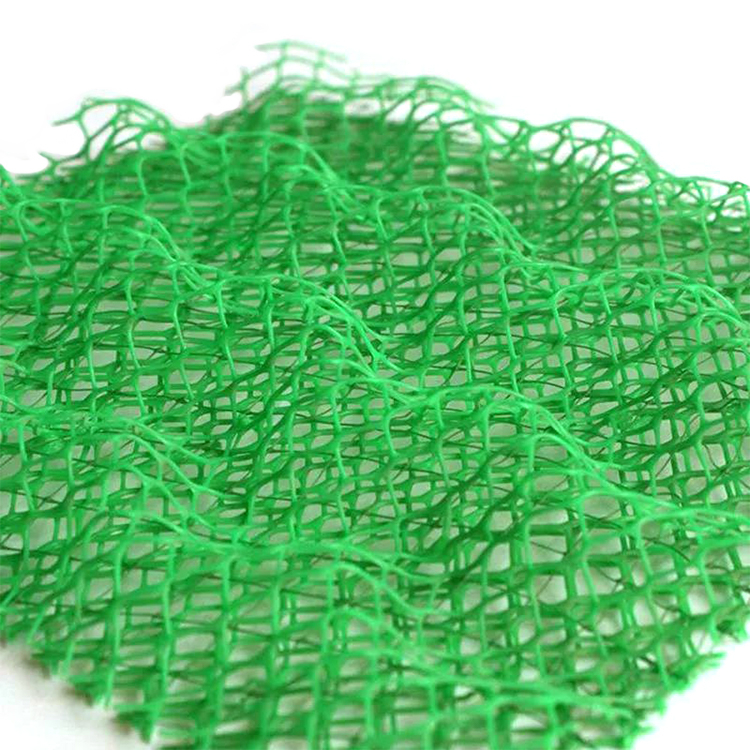

3D Erosion Control Mat also called 3D geomat, it is a three-dimensional mat made from extruded and bi-oriented polyethylene grids. The underside of the mat is made flat to provide even contact with the prepared soil surface.
The upper surface is made cuspated to provide excellent soil retention. The three dimensional structure retains a layer of top soil and anchors the growing grass roots thus providing a stable surface highly resistant the forces of rain drops and run off.
Performance
(1) Slope protection；
(2) The upper surface is made cuspated to provide excellent soil retention.
(1) Before the greensward grows,it prevents the surface of the land from the erosion of the wind and rain.
(2) Form compound protection layer with the vegetable,standing the wash-out of the high water level and large speed current.
(3) Replace the concrete,asphalt,and block,using in the slope surface protection of roadway,railway,river-way,dyke,and the hillside,etc.
Technical data
Item | EM2 | EM 3 | EM 4 | EM 5 |
Mass per unit.≥ (g/m2) | 220 | 260 | 350 | 430 |
Thickness≥ (mm) | 10 | 12 | 14 | 16 |
Width≥ (m) | 2 | |||
Length≥ (m) | 30 | |||
Vertical tensile strength≥ (KN/m) | 0.8 | 1.4 | 2.0 | 3.2 |
Horizontal tensile trengh≥ (KN/m) | 0.8 | 1.4 | 2.0 | 3.2 |
Remark: The special specification or size can be manufactured according to the demands of the customer | ||||
3D Erosion Control Mat also called 3D geomat, it is a three-dimensional mat made from extruded and bi-oriented polyethylene grids. The underside of the mat is made flat to provide even contact with the prepared soil surface.
The upper surface is made cuspated to provide excellent soil retention. The three dimensional structure retains a layer of top soil and anchors the growing grass roots thus providing a stable surface highly resistant the forces of rain drops and run off.
Performance
(1) Slope protection；
(2) The upper surface is made cuspated to provide excellent soil retention.
(1) Before the greensward grows,it prevents the surface of the land from the erosion of the wind and rain.
(2) Form compound protection layer with the vegetable,standing the wash-out of the high water level and large speed current.
(3) Replace the concrete,asphalt,and block,using in the slope surface protection of roadway,railway,river-way,dyke,and the hillside,etc.
Technical data
Item | EM2 | EM 3 | EM 4 | EM 5 |
Mass per unit.≥ (g/m2) | 220 | 260 | 350 | 430 |
Thickness≥ (mm) | 10 | 12 | 14 | 16 |
Width≥ (m) | 2 | |||
Length≥ (m) | 30 | |||
Vertical tensile strength≥ (KN/m) | 0.8 | 1.4 | 2.0 | 3.2 |
Horizontal tensile trengh≥ (KN/m) | 0.8 | 1.4 | 2.0 | 3.2 |
Remark: The special specification or size can be manufactured according to the demands of the customer | ||||
